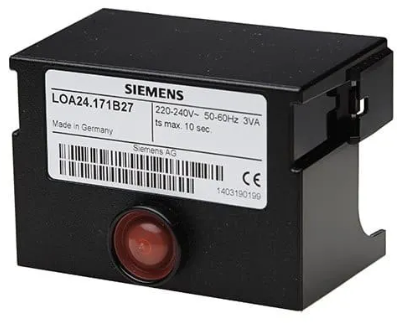

رله تایمر مشعل زیمنس لاندیس LOA 24.171 B27

Manufacturer : Siemens

Product No : LOA24.171B27

Product Type : Oil Burner Controls

Main Voltage : AC 220 V –15 % ...AC 240 V +10 % , AC 100 V –15 %...AC 110 V +10 %

Mains frequency : 50...60 Hz ±6 %

External primary fuse (Si) : 10 A (fast)

Power consumption : 3 VA

Degree of protection : IP 40, must be ensured through mounting

Safety class : I

Perm cable length : max. 3 m with 100 pF/m line capacitance

Detector cable laid separately : max. 20 m

Remote reset laid separately : max. 20 m

Mounting position : optional

Input Current to

Terminal 1 : 5 A (short-time 15 A for max. 0.5 s)

Terminal 3 : 5 A (excl. current draw of burner motor and oil preheater)

Max perm current at cos ≥ 0.6

Terminal 4 : 1 A

Terminal 5 : 1 A

Terminal 6 : 2 A

Terminal 7 : 2 A

Terminal 8 : 5 A

Terminal 10 : 1 A

Transport : DIN EN 60 721-3-2

Climatic conditions : class 2K2

Mechanical conditions : class 2M2

Temperature range : -50...+60 °C

Humidity : < 95 % r.h.

Operation : DIN EN 60 721-3-3

Climatic conditions : class 3K5

Mechanical conditions : class 3M2

Temperature range : -20...+60 °C

Humidity : < 95 % r.h.

Weight : approx. 0.18 Kg
